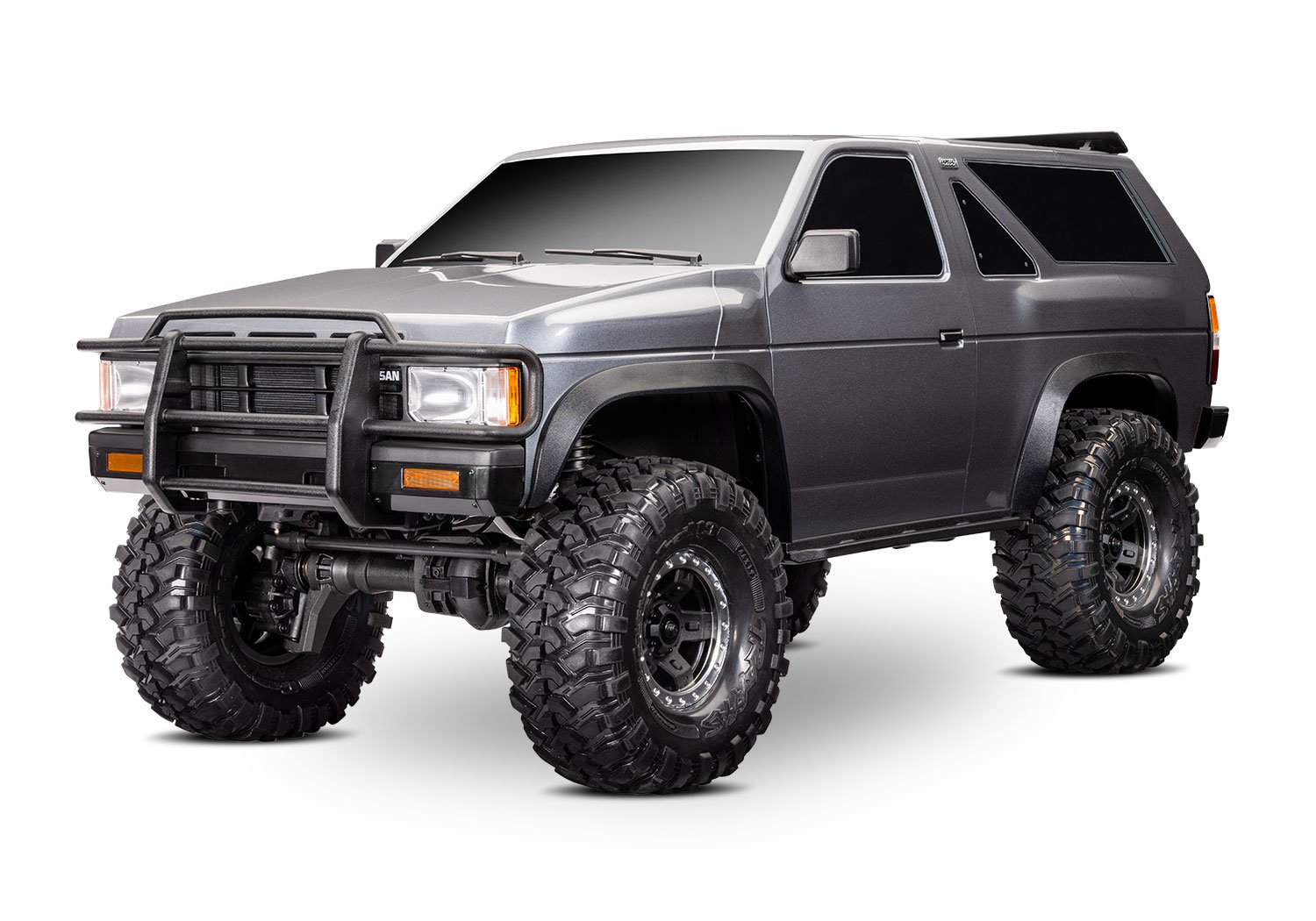

TRX-4 Nissan Pathfinder Silver
TRX-4 Nissan Pathfinder Silver
MODEL SPECS
| Model Name: |
TRX-4 Nissan Pathfinder |
|---|
| Type: |
Trail / Crawler |
|---|
| Skill Level: |
1 |
|---|
| Scale: |
1/10 |
|---|
| Weight: |
6.78 pounds (3.08 kg) |
|---|
| Length: |
22.72 inches (577 mm) |
|---|
| Width: |
9.78 inches (249 mm) |
|---|
| Track: |
9.78 inches (249 mm) |
|---|
| Height: |
9.49 inches (241 mm) |
|---|
| Wheelbase: |
12.28 inches (312 mm) |
|---|
| Center Ground Clearance: |
3.14 inches (80 mm) |
|---|
| Drivetrain: |
Shaft-driven 4WD |
|---|
| Transmission: |
2-speed high/low, remote shifting |
|---|
| Differential Type: |
4 gear, remote locking |
|---|
| Gear Pitch: |
32 pitch |
|---|
| Servo: |
2075X metal gear, digital high-torque waterproof |
|---|
| Radio System: |
TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver |
|---|
| Battery Compartment Specs: |
159 mm X 47 mm X 23 mm |
|---|
MOTOR SPECS
| Motor Name: |
Titan® 21T Reverse Rotation |
|---|
| Type: |
High-torque brushed motor |
|---|
| Weight: |
8.47 ounces (240 g) |
|---|
| Length: |
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
|---|
| Diameter: |
1.53 inches (39 mm) |
|---|
| Shaft Size: |
3 mm |
|---|
| Connector Type: |
Bullet |
|---|
ESC SPECS
| ESC Name: |
XL-5™ HV |
|---|
| Type: |
Brushed |
|---|
| Case Size: |
1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
|---|
| Weight: |
2.60 ounces (74 g) |
|---|
| Motor Connectors: |
Bullet |
|---|
| Battery Connectors: |
Traxxas High-Current Connector |
|---|
| Power Wire: |
14 gauge |
|---|
